SAINT SIRO PUMPING STATION IN SAINT BENEDETTO PO (MANTOVA, ITALY)

SITE: Saint Benedetto Po (MN, Italy)
CUSTOMER: Consorzio di Bonifica dell’Emilia Centrale (Emilia Land Reclamation Consortium)
SERVICES: Final and detailed design (2012-2013), supervision of works, health and safety coordination and management in construction site (2013-2014)
AMOUNT OF WORKS: € 1,5 millions for structural works


Saint Siro pumping station in San Benedetto Po (Mantova, Italy)Provisional works in order to secure the building of the pumping station in Saint Siro, located in the town of San Benedetto Po (MN), damaged by the earthquakes of 20 and 29 May 2012, by structural consolidation and seismic strengthening.

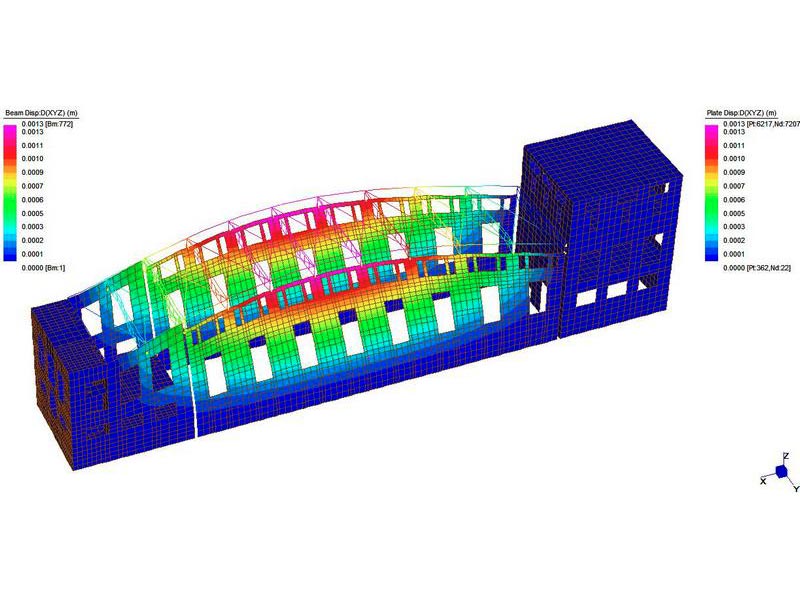

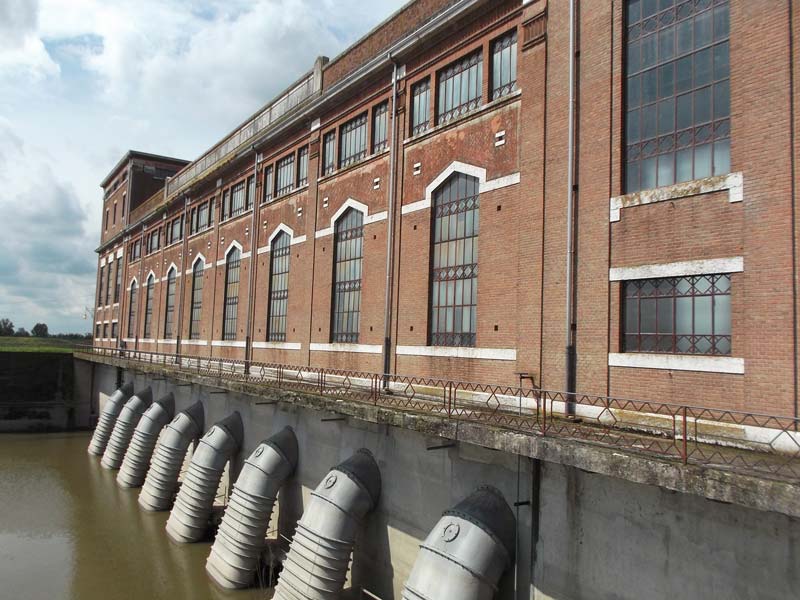

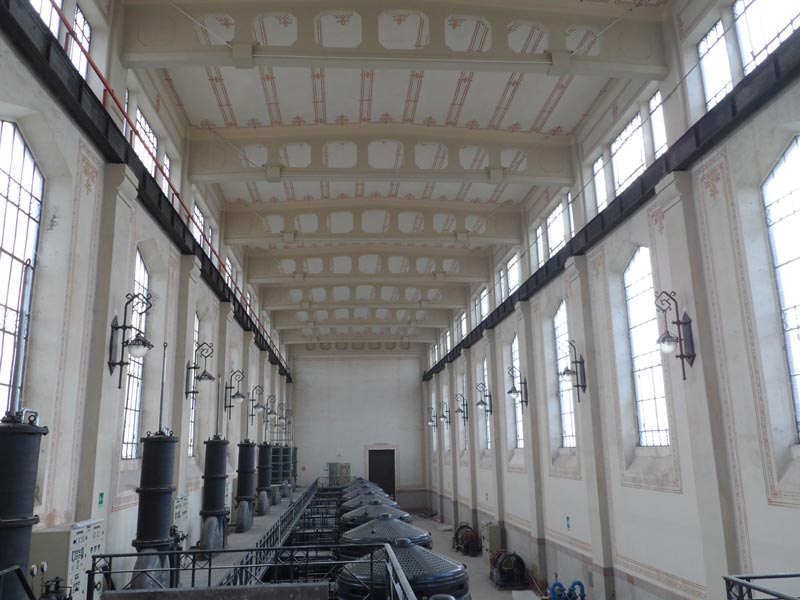

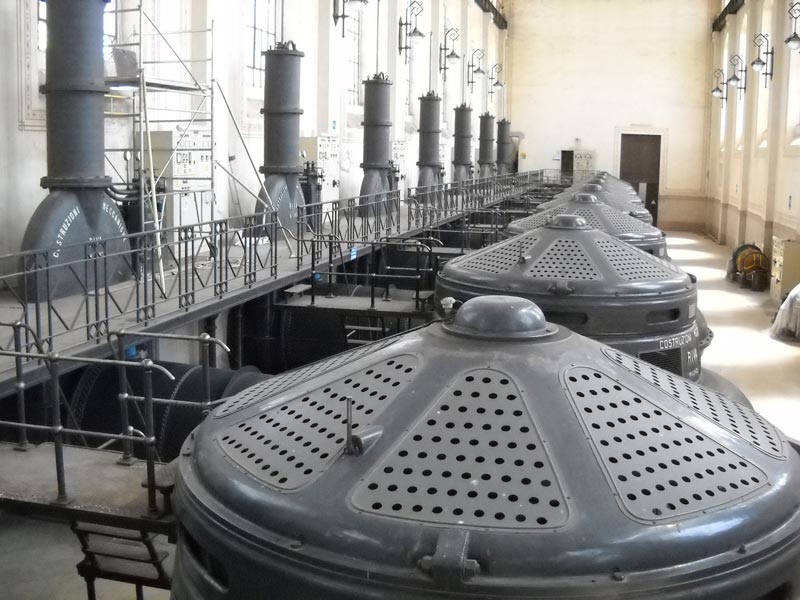

The plant, which dates to the early Thirties , hosts a battery of 8 lifting pumps for lifting water and stands as  a strategic the defense of the territory against the floods of the River Secchia and the flooding of the upstream basin. The building shows a rectangular plant  (92.4 x 15 m) and has a flat roof on two levels. Two medium intensity earthquakes in May 2012 revealed damages related to construction details and building vulnerability (transverse joints causing separate structures with different stiffness against horizontal actions, insufficient connection and reinforcement of r.c. beams supporting the roof). In order not to alter the characteristics of the cultural heritage building with too invasive interventions, the design aims to achieve an overall improving of the seismic behaviour, not the adjustment, planning to relocate the strategic function of the plant; it involves these works:

  • Reinforcement of masonry parapets on the roof and their anchorage to the roof slab;

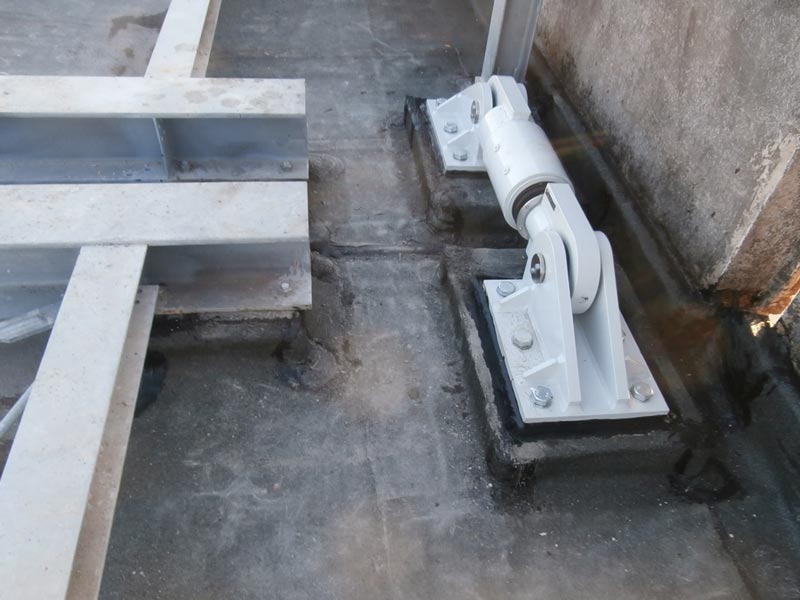

  • On the roof, introduction over the structural joints of shock-transmitters and shear connections to block relative displacements in transversal direction;

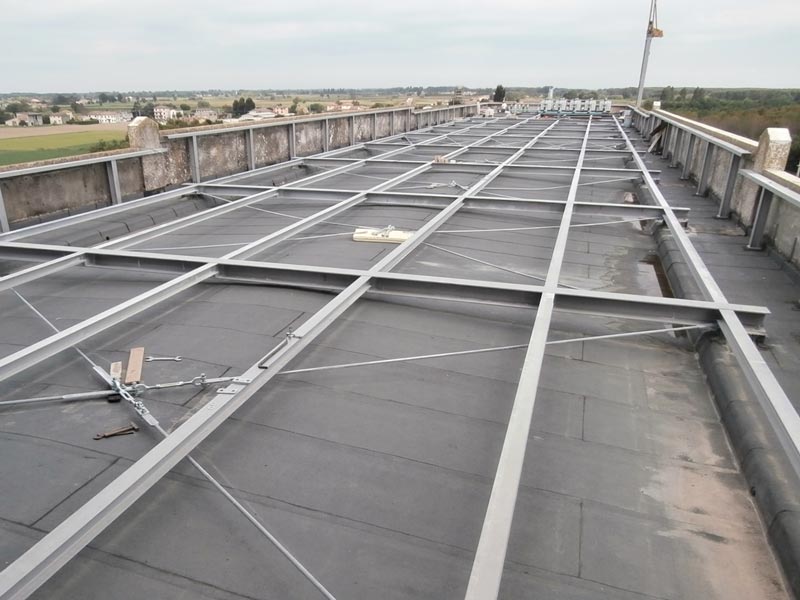

  • Over the roof, realization of a plane bracing system made of r.c.  beams and steel trusses and rods;

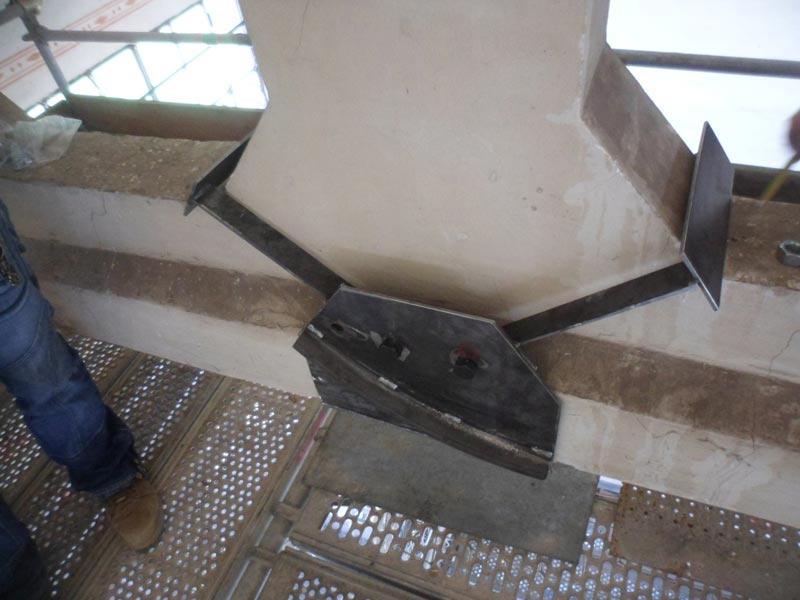

  • Ligature of the r.c. pillars placed on the perimeter of the pump room to the adjacent masonry walls with stainless steel bars
  • Localized repairing of  masonry and concrete cracks;
  • Localized reinforcements with FRP stripes
